SKU 4250.14053

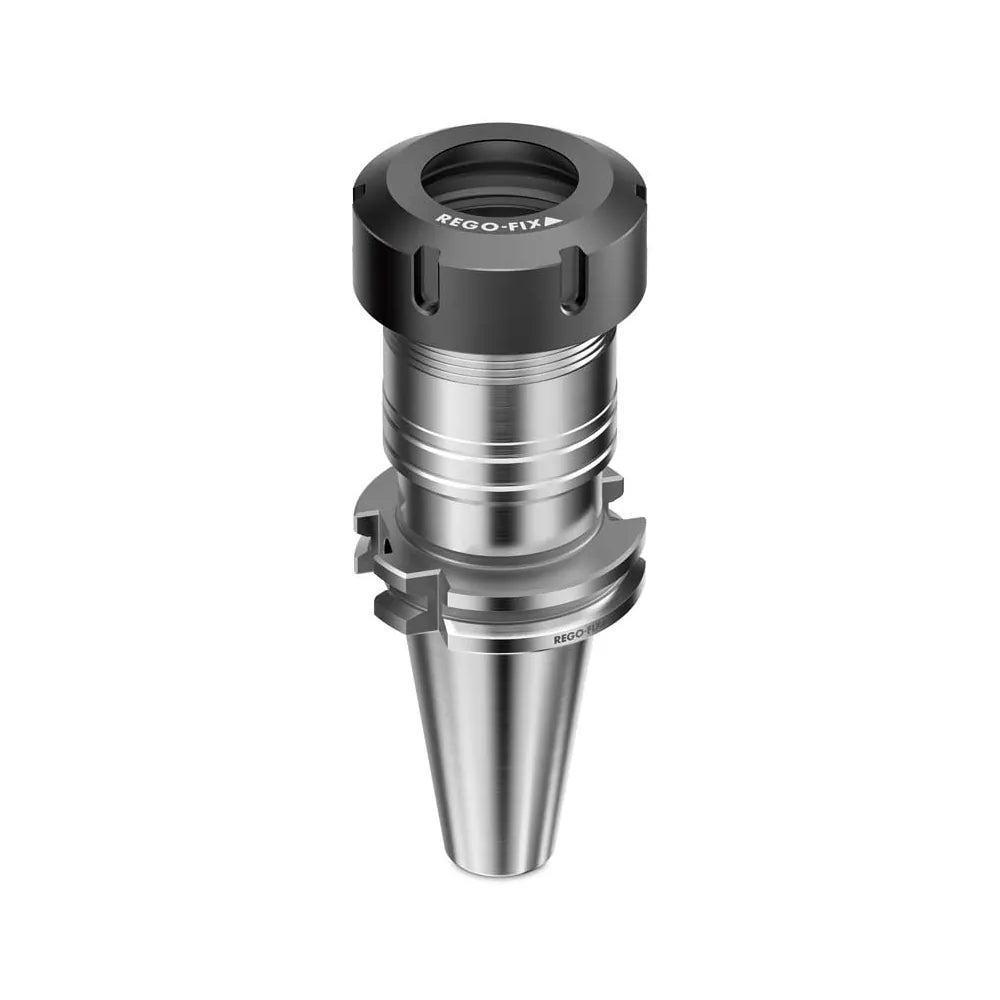

SK-B 50 / ER 40 x 100mm H
$501.00 MSRP
Available on backorder
Most items ship within 1–2 weeks; confirmed at order.
- Balanced to 25,000 RPM
- 0.0001″ TIR
- Includes Hi-Q Nut
- High Vibration Damping
- Manufactured in Switzerland
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | SK |
| Taper class | Form-B |
| Spindle size | SK 50 |
| Tool side | ER |
| Collet taken | ER40 |
| TIR (in) | 0.0001 |
| TIR (mm) | 0.003 |
| Nose diameter (in) | 2.4803 |
| Nose diameter (mm) | 63.0 |
| Projection (in) | 3.937 |
| Projection (mm) | 100.0 |
| Max RPM | 25000 |
| Coolant-thru | Yes |
