SKU 4240.71583

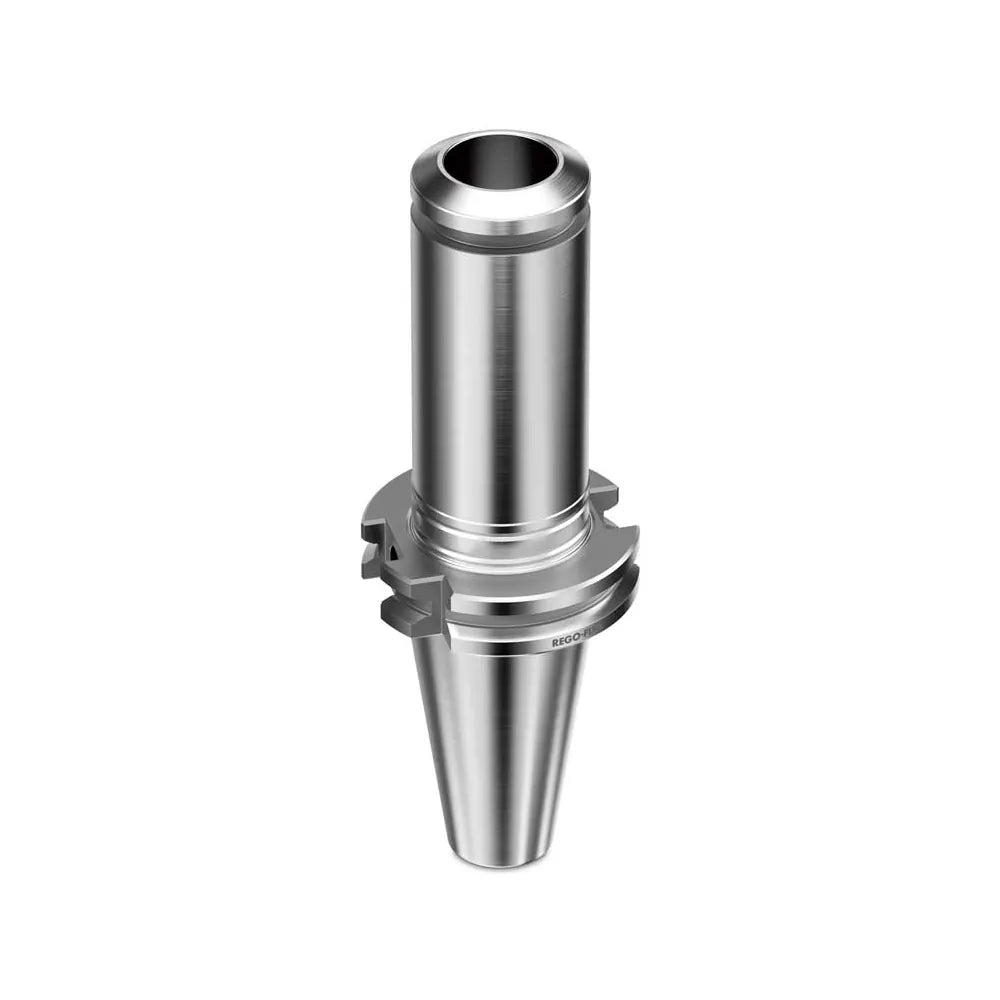

SK-B 40 / PG 15 x 160 H
$545.00 MSRP
Available on backorder
Most items ship within 1–2 weeks; confirmed at order.
- Manufactured in Switzerland
- Balanced to 25,000 RPM
- Total system runout 0.0003″ TIR
- High Vibration Damping
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | SK |
| Taper class | Form-B |
| Spindle size | SK 40 |
| Tool side | PG |
| Collet taken | PG15 |
| TIR (mm) | 0.001 |
| Nose diameter (in) | 0.9449 |
| Nose diameter (mm) | 24.0 |
| Projection (in) | 6.2992 |
| Projection (mm) | 160.0 |
| Coolant-thru | Yes |
