SKU 4240.70640

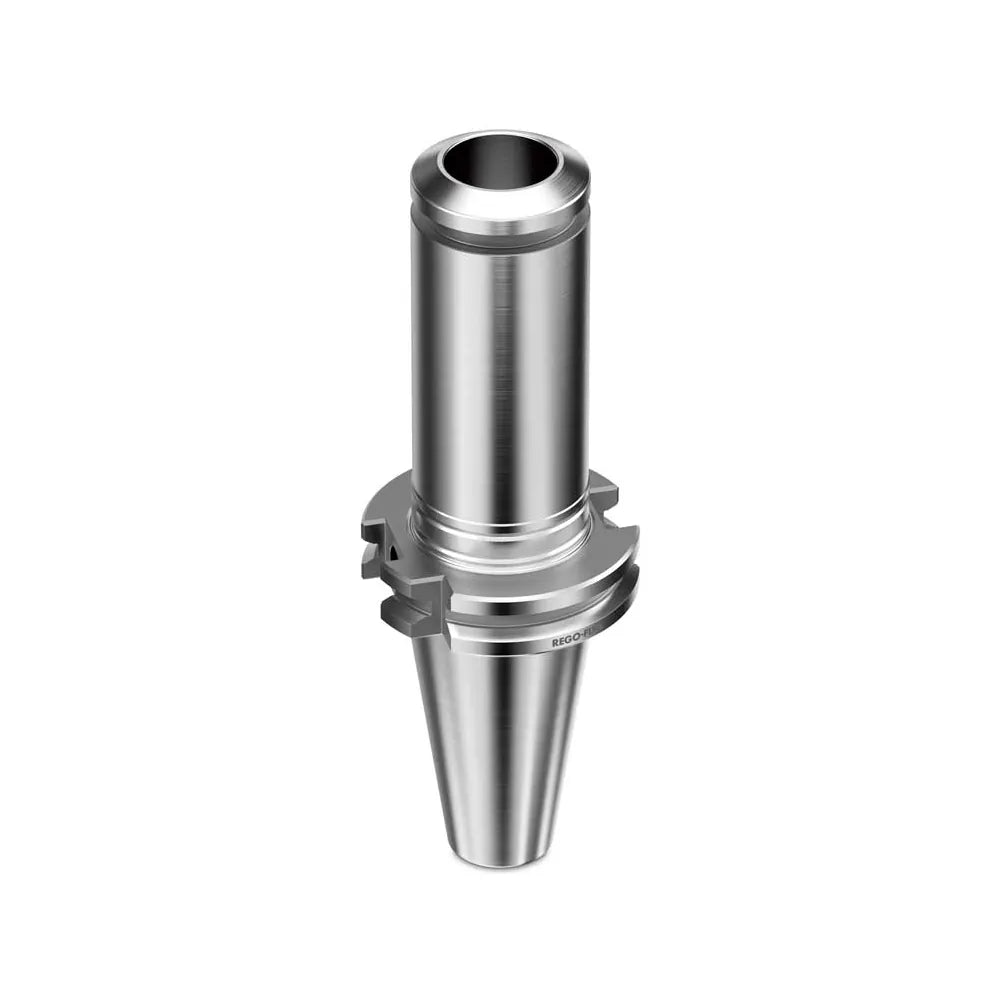

SK 40 / PG 6 x 080 H
$826.00 MSRP
Available on backorder
Most items ship within 1–2 weeks; confirmed at order.
- Manufactured in Switzerland
- Total system TIR 0.0003″
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | SK |
| Taper class | Standard |
| Spindle size | SK 40 |
| Tool side | PG |
| Collet taken | PG6 |
| TIR (in) | 0.0001 |
| TIR (mm) | 0.003 |
| Nose diameter (in) | 0.39 |
| Nose diameter (mm) | 10.0 |
| Projection (in) | 3.15 |
| Projection (mm) | 80.0 |
| Max RPM | 25000 |
| Coolant-thru | Yes |
