SKU 4550.13284

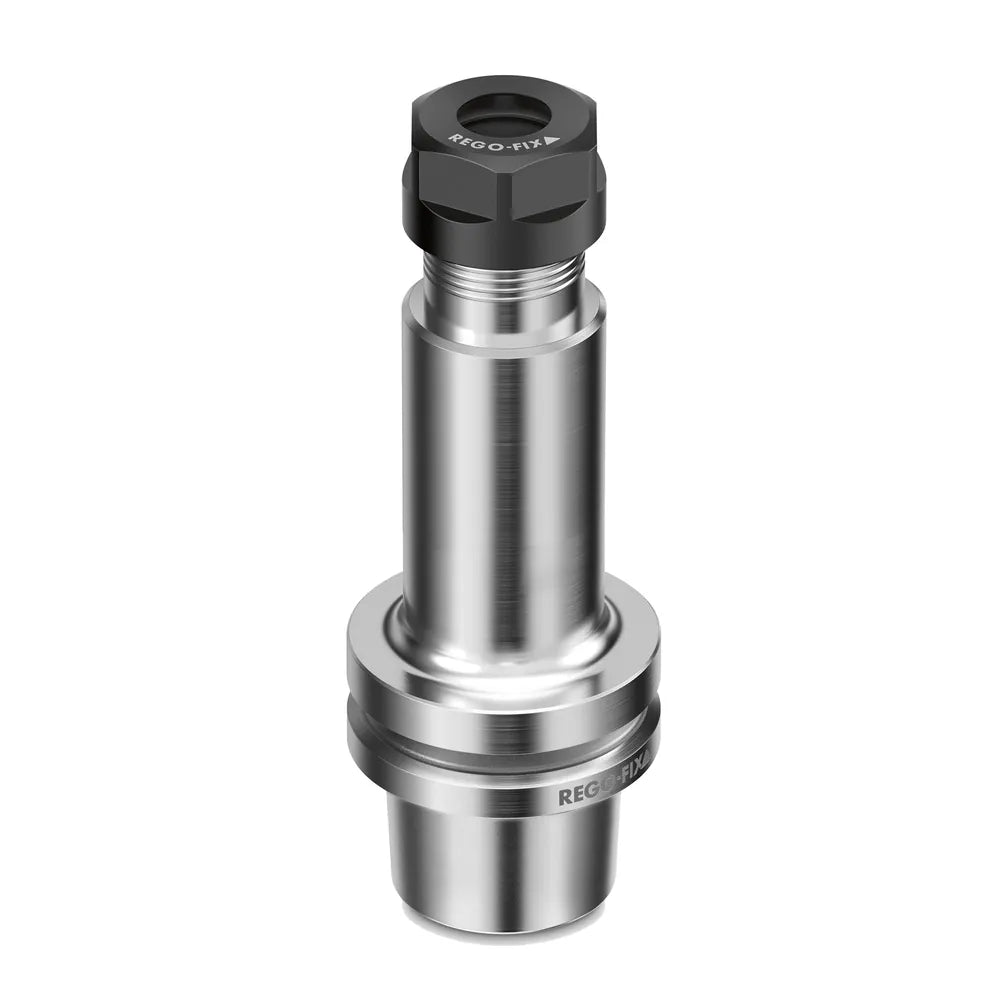

HSK-E 50 / ER 32 x 160 H
$472.00 MSRP
Available on backorder
Most items ship within 1–2 weeks; confirmed at order.
- Balanced to 36,000 RPM
- 0.0001″ TIR
- Includes Hi-Q Nut
- High Vibration Damping
- Manufactured in Switzerland
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | HSK |
| Taper class | HSK-E |
| Spindle size | HSK 50 |
| Tool side | ER |
| Collet taken | ER32 |
| TIR (in) | 0.0001 |
| TIR (mm) | 0.003 |
| Nose diameter (in) | 1.97 |
| Nose diameter (mm) | 50.0 |
| Projection (in) | 6.304 |
| Projection (mm) | 160.0 |
| Max RPM | 36000 |
| Coolant-thru | Yes |
