SKU 4540.11644

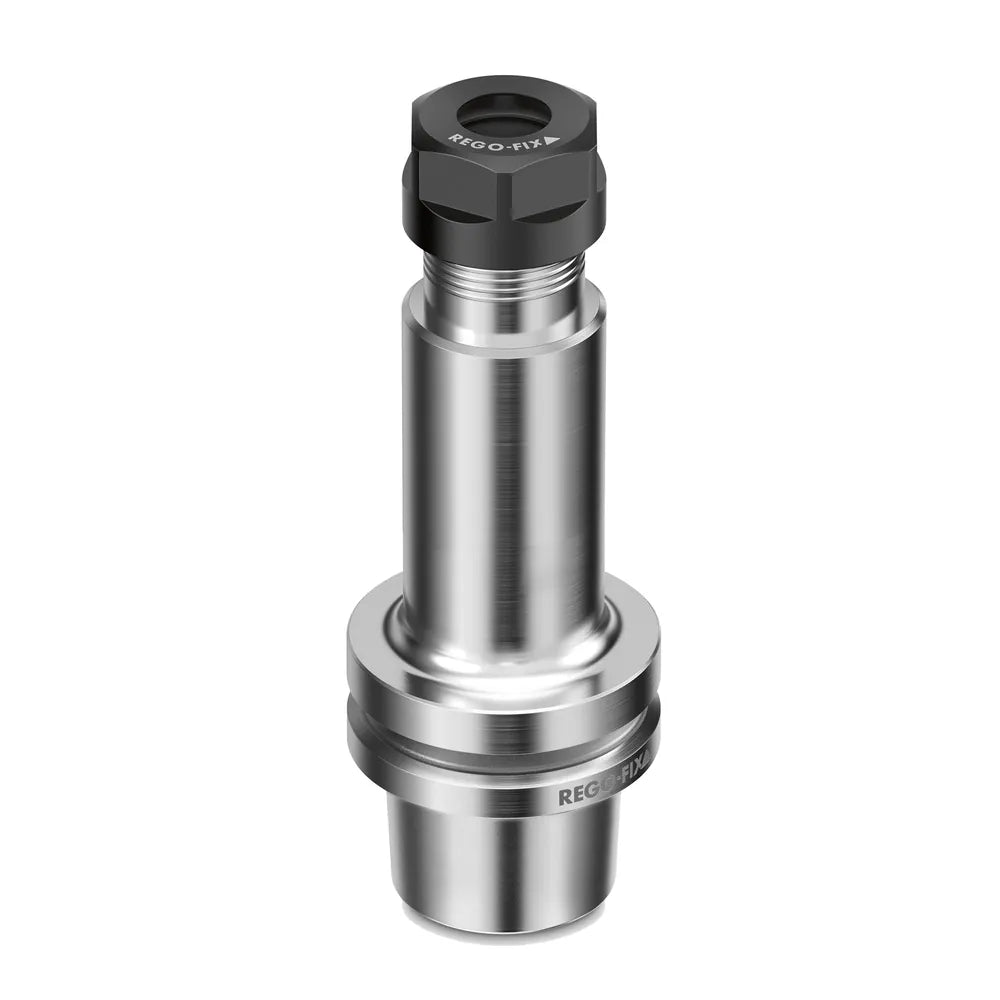

HSK-E 40 / ER 16 x 080 H
$345.00 MSRP
In stock
Most items ship within 1–2 weeks; confirmed at order.
- Balanced to 45,000 RPM
- 0.0001″ TIR
- Includes Hi-Q Nut
- High Vibration Damping
- Manufactured in Switzerland
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | HSK |
| Taper class | HSK-E |
| Spindle size | HSK 40 |
| Tool side | ER |
| Collet taken | ER16 |
| TIR (in) | 0.0001 |
| TIR (mm) | 0.003 |
| Nose diameter (in) | 1.1032 |
| Nose diameter (mm) | 28.0 |
| Projection (in) | 3.152 |
| Projection (mm) | 80.0 |
| Max RPM | 45000 |
| Coolant-thru | Yes |
