SKU 8865.16170

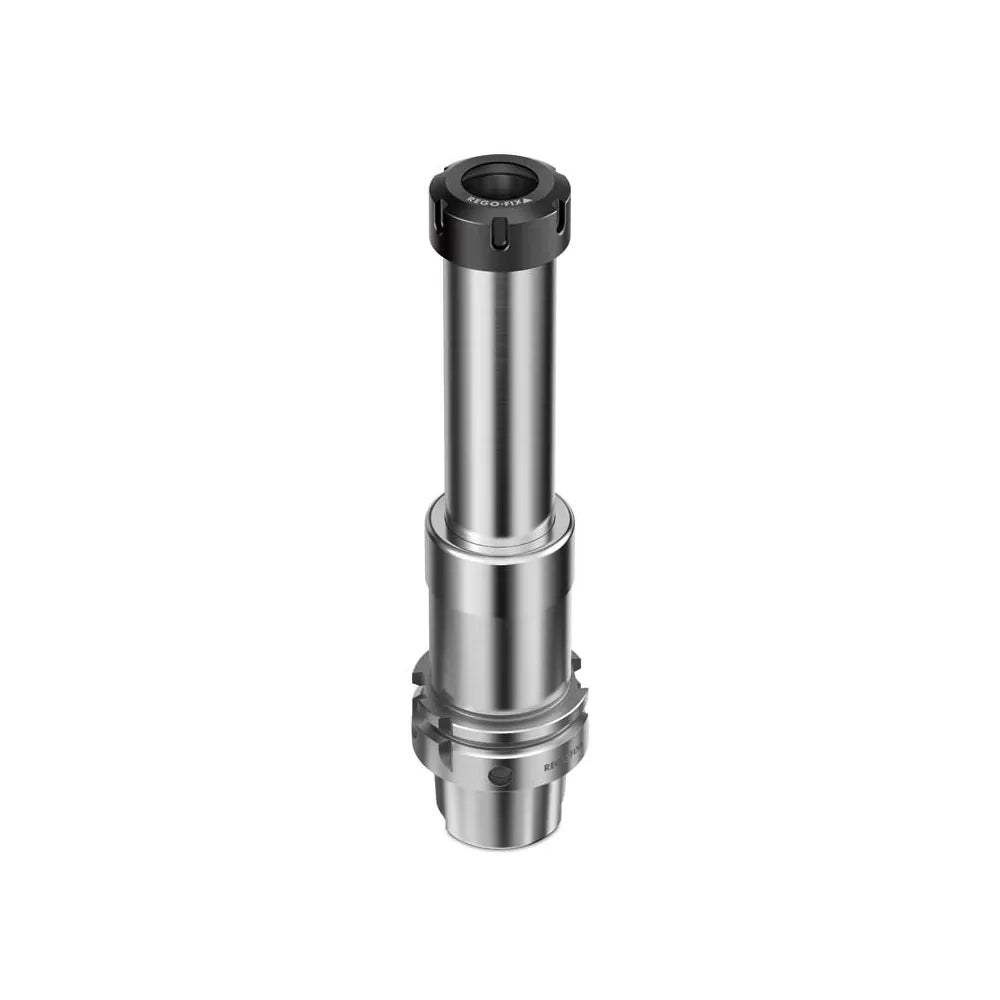

HSK-A 63 / ER 32 x 340 XL
$1,653.00 MSRP
Available on backorder
Most items ship within 1–2 weeks; confirmed at order.
- Balanced to 5,000 RPM
- 0.0001″ TIR
- Includes Hi-Q Nut
- High Vibration Damping
- Manufactured in Switzerland
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | HSK |
| Taper class | HSK-A |
| Spindle size | HSK 63 |
| Tool side | ER |
| Collet taken | ER32 |
| TIR (in) | 0.0001 |
| TIR (mm) | 0.003 |
| Nose diameter (in) | 1.97 |
| Nose diameter (mm) | 50.0 |
| Projection (in) | 13.396 |
| Projection (mm) | 340.0 |
| Max RPM | 5000 |
| Coolant-thru | Yes |
