SKU 2620.12010

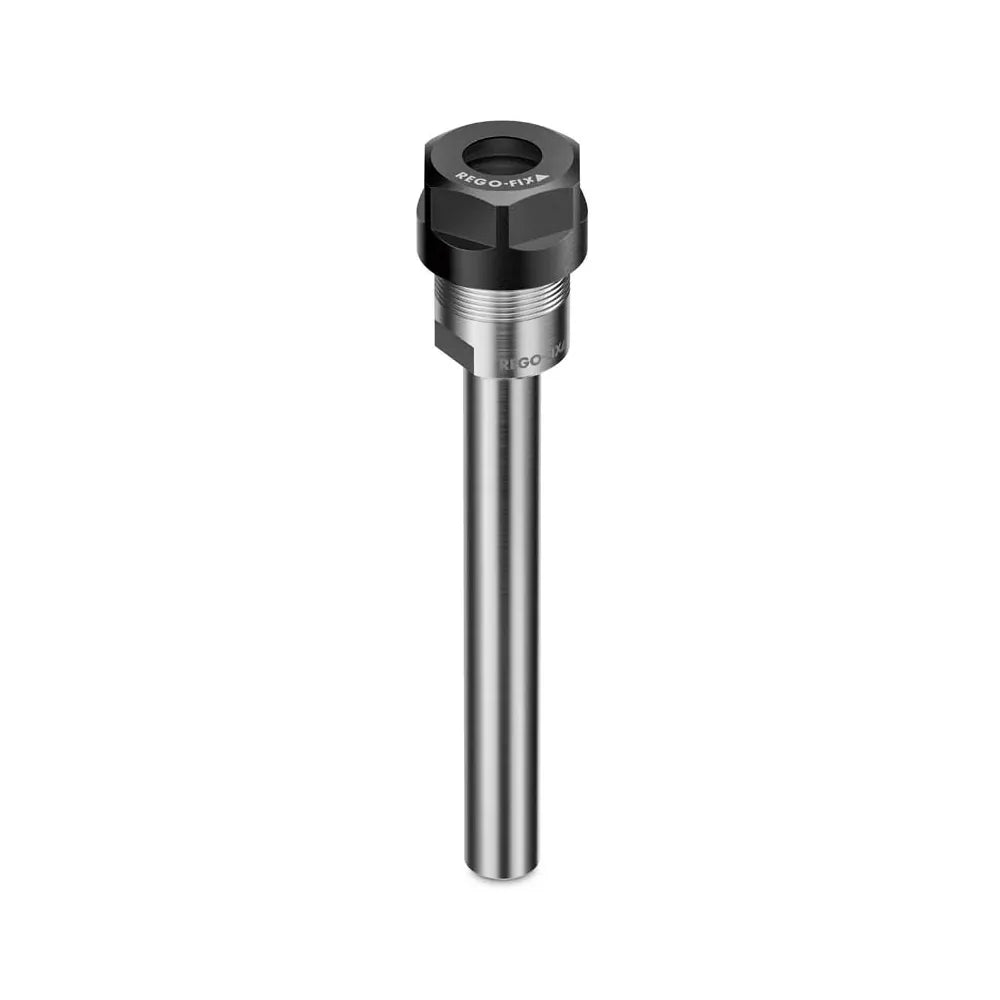

CYL 20 x 030 / ER 20
$222.00 MSRP
Available on backorder
Most items ship within 1–2 weeks; confirmed at order.
- h6 Tolerance Shank
- 0.0001″ TIR
- Includes Hi-Q Nut
- High Vibration Damping
- Manufactured in Switzerland
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | CYL |
| Taper class | Standard |
| Spindle size | CYL 20 |
| Tool side | ER |
| Collet taken | ER20 |
| TIR (in) | 0.0001 |
| TIR (mm) | 0.003 |
| Nose diameter (in) | 1.3396 |
| Nose diameter (mm) | 34.0 |
| Projection (in) | 1.182 |
| Projection (mm) | 30.0 |
| Coolant-thru | Yes |
