SKU 2622.21624

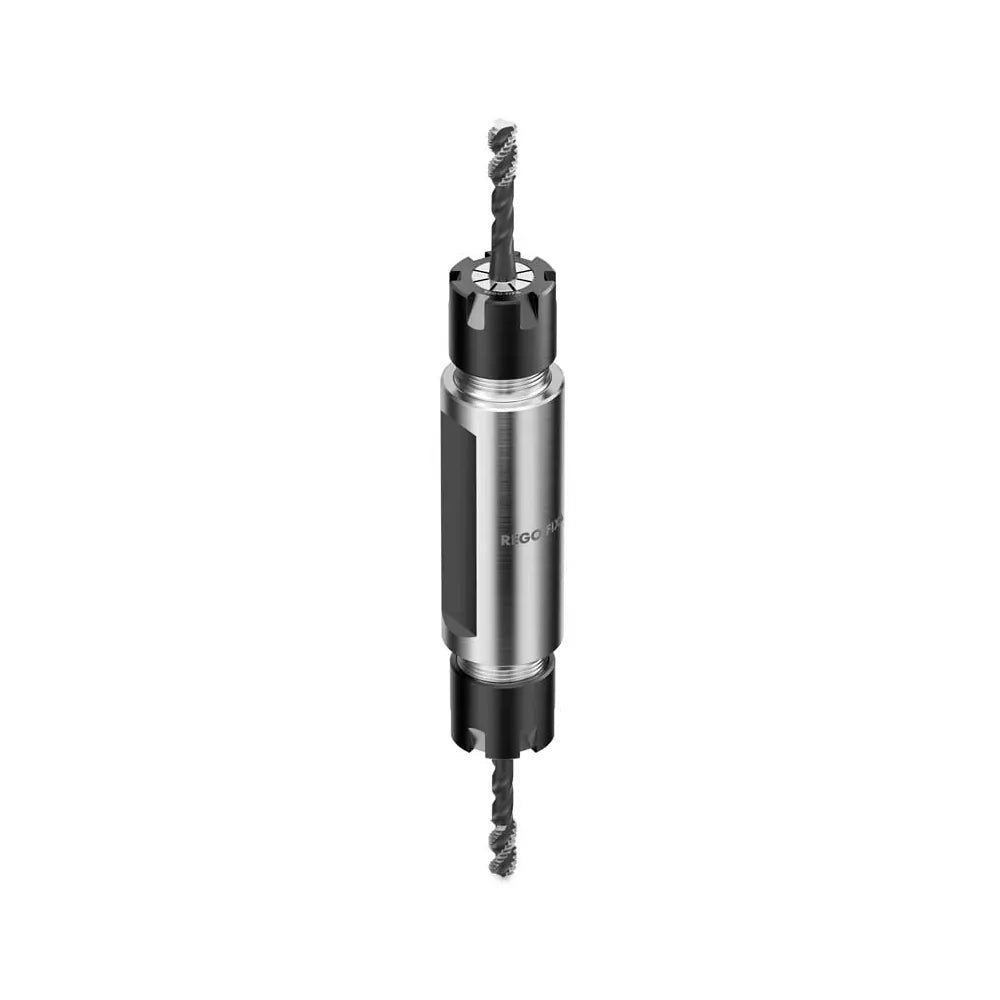

CYDF 22 x 040 / ERM 16
$311.00 MSRP
Available on backorder
Most items ship within 1–2 weeks; confirmed at order.
- h6 Tolerance Shank
- 0.0002″ TIR
- Includes Hi-Q Nut
- High Vibration Damping
- Manufactured in Switzerland
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | CYL |
| Taper class | Standard |
| Spindle size | CYL 22 |
| Tool side | ER |
| Collet taken | ER16 |
| TIR (in) | 0.0002 |
| TIR (mm) | 0.005 |
| Nose diameter (in) | 0.8668 |
| Nose diameter (mm) | 22.0 |
| Projection (in) | 1.576 |
| Projection (mm) | 40.0 |
| Coolant-thru | No |
