SKU 8853.78076

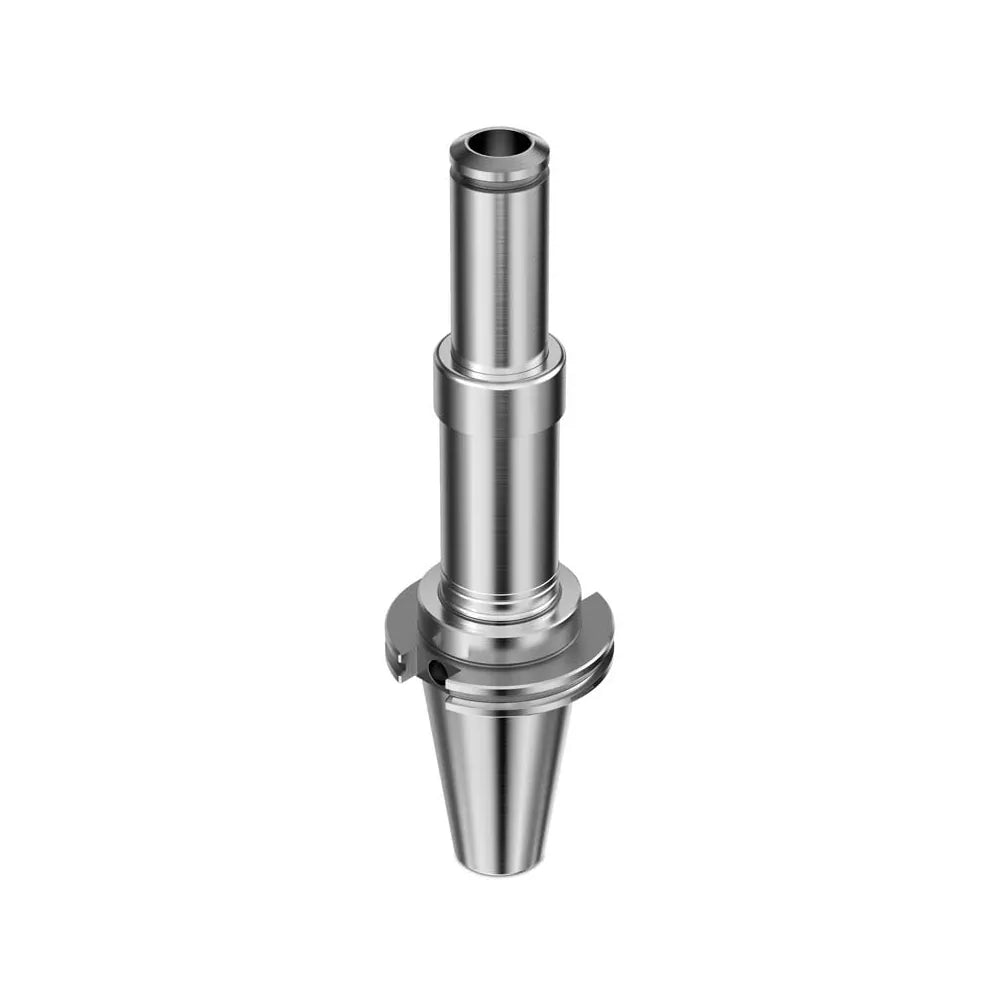

CAT+ 50 / PG 32 x 9.81″ XL
$3,131.00 MSRP
Available on backorder
Most items ship within 1–2 weeks; confirmed at order.
- Manufactured in Switzerland
- Balanced to 5,000 RPM
- Toolholder runout 0.0001″ TIR
- High Vibration Damping
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | CAT |
| Taper class | BIG PLUS |
| Spindle size | CAT 50 |
| Tool side | PG |
| Collet taken | PG32 |
| TIR (mm) | 0.003 |
| Nose diameter (in) | 1.9685 |
| Nose diameter (mm) | 50.0 |
| Projection (in) | 9.81 |
| Projection (mm) | 249.2 |
| Max RPM | 5000 |
| Coolant-thru | Yes |
