SKU 8886.76060

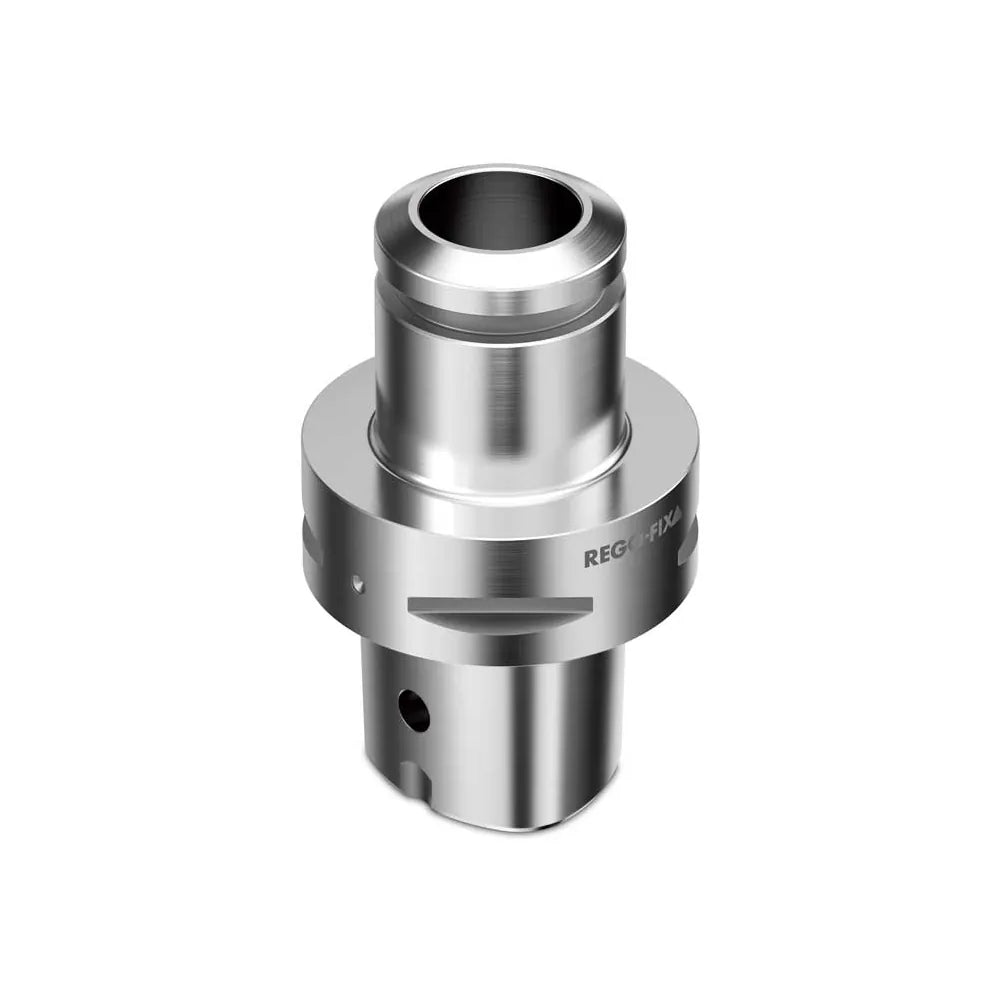

C6 / PG 25 x 230 XL
$1,854.00 MSRP
Available on backorder
Most items ship within 1–2 weeks; confirmed at order.
- Manufactured in Switzerland
- Balanced to 5,000 RPM
- Total system runout 0.0003″ TIR
- High Vibration Damping
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | Capto |
| Taper class | Standard |
| Spindle size | C 6 |
| Tool side | PG |
| Collet taken | PG25 |
| TIR (mm) | 0.003 |
| Nose diameter (in) | 1.5748 |
| Nose diameter (mm) | 40.0 |
| Projection (in) | 9.0551 |
| Projection (mm) | 230.0 |
| Coolant-thru | Yes |
