SKU 4140.71043

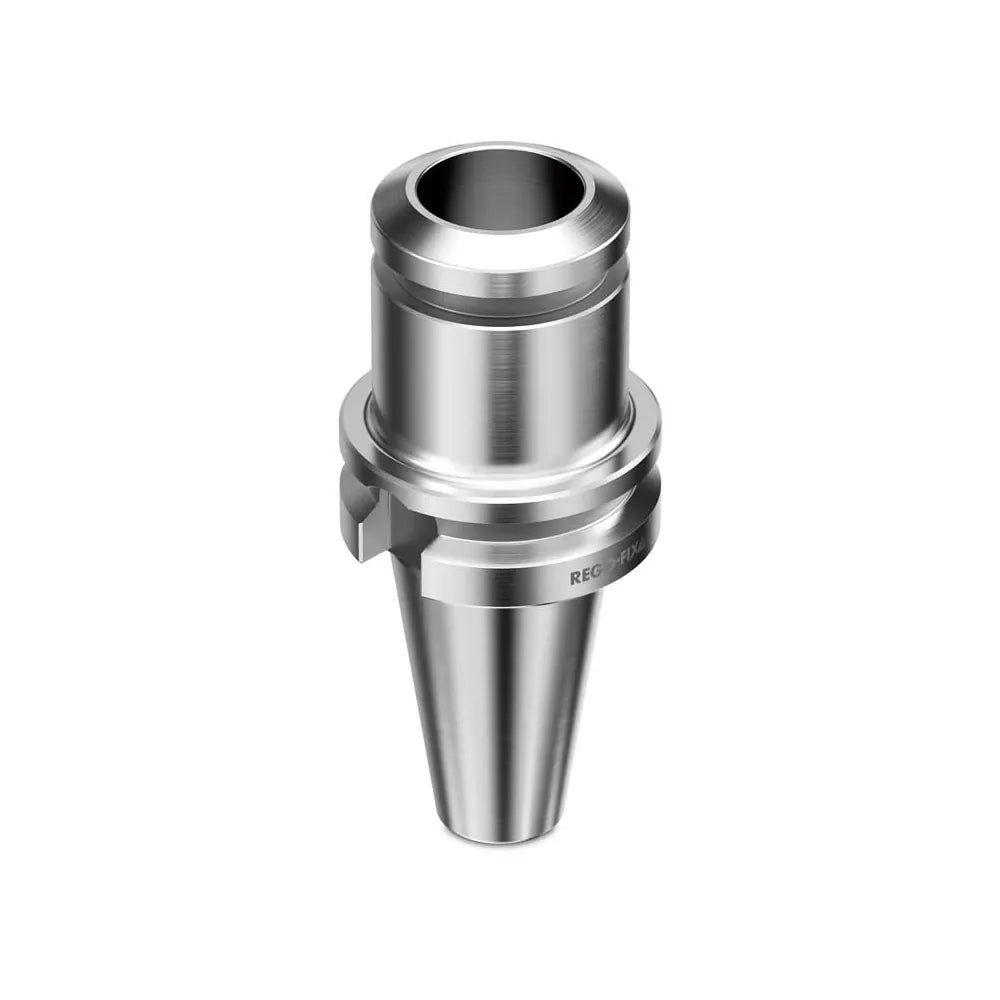

BT-B 40 / PG 10 x 080 H
$491.00 MSRP
In stock
Most items ship within 1–2 weeks; confirmed at order.
- Manufactured in Switzerland
- Balanced to 25,000 RPM
- Total system runout 0.0003″ TIR
- High Vibration Damping
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | BT |
| Taper class | Form-B |
| Spindle size | BT 40 |
| Tool side | PG |
| Collet taken | PG10 |
| TIR (mm) | 0.001 |
| Nose diameter (in) | 0.6299 |
| Nose diameter (mm) | 16.0 |
| Projection (in) | 3.1496 |
| Projection (mm) | 80.0 |
| Coolant-thru | Yes |
