SKU 5140.73240

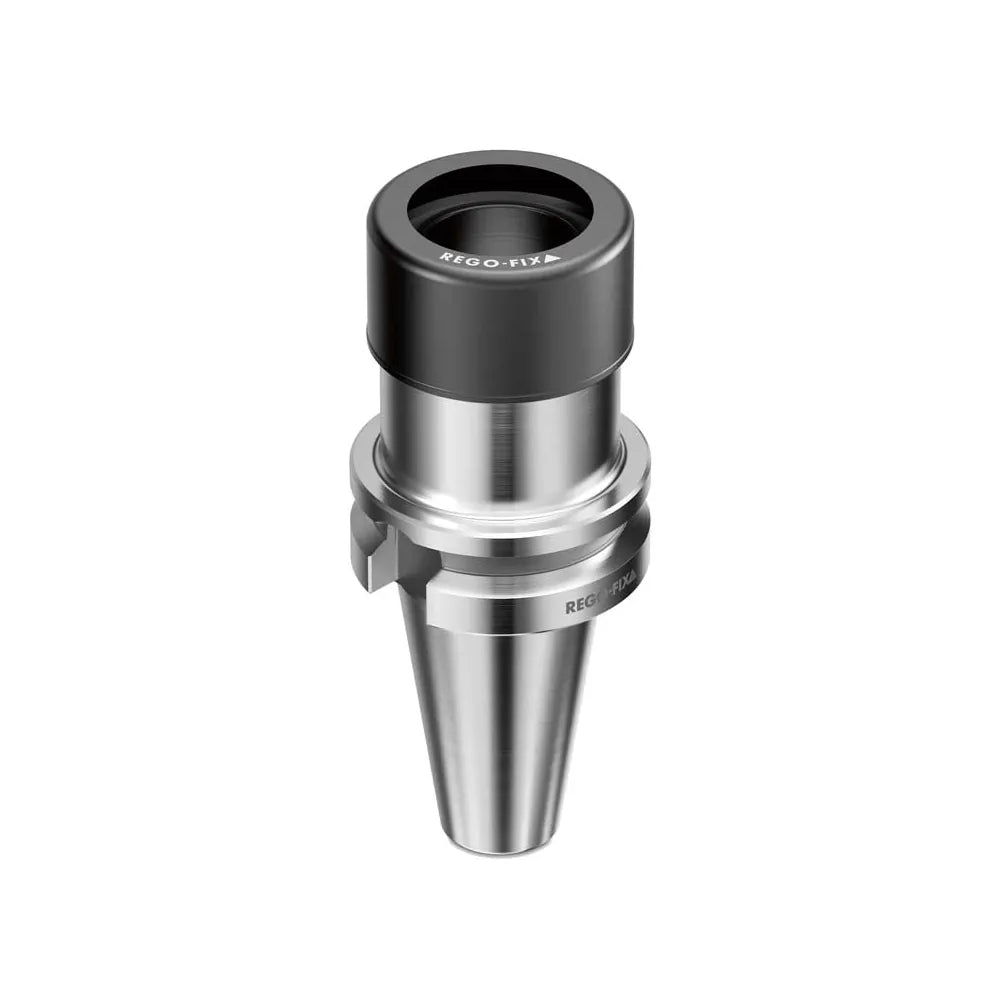

BT 40 / PG 32-SG x 086
Available on backorder
Most items ship within 1–2 weeks; confirmed at order.
Request a quote
List price on request. Tell us what you need and we will send you a quote by email.
- Manufactured in Switzerland
- Balanced to 25,000 RPM
- Total system runout 0.0003″ TIR
- High Vibration Damping
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | BT |
| Taper class | Standard |
| Spindle size | BT 40 |
| Tool side | PG |
| Collet taken | PG32 |
| Nose diameter (in) | 2.1654 |
| Nose diameter (mm) | 55.0 |
| Projection (in) | 3.3858 |
| Projection (mm) | 86.0 |
| Coolant-thru | Yes |
