SKU 5140.72546

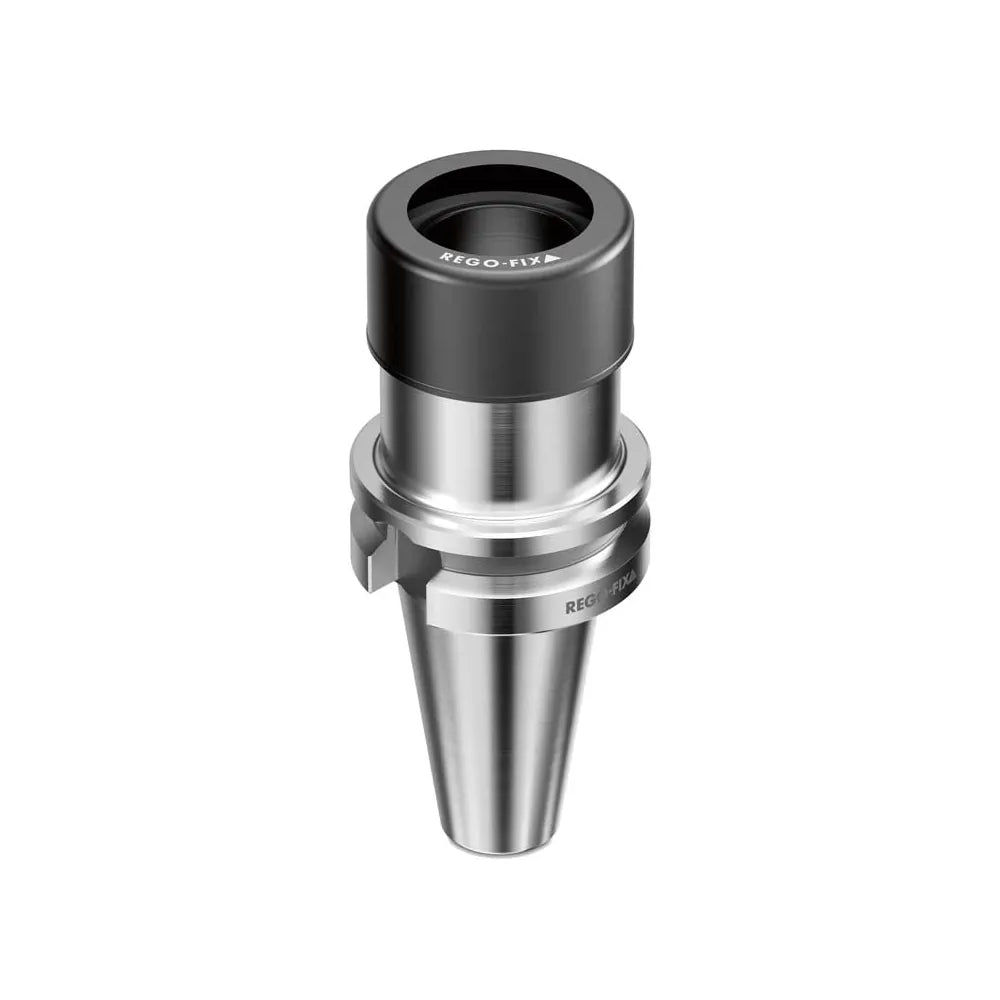

BT+ 40 / PG 25-SG x 080 H
In stock
Most items ship within 1–2 weeks; confirmed at order.
Request a quote
List price on request. Tell us what you need and we will send you a quote by email.
- Manufactured in Switzerland
- Balanced to 25,000 RPM
- Total system runout 0.0003″ TIR
- High Vibration Damping
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | BT |
| Taper class | BIG PLUS |
| Spindle size | BT 40 |
| Tool side | PG |
| Collet taken | PG25 |
| Nose diameter (in) | 1.811 |
| Nose diameter (mm) | 46.0 |
| Projection (in) | 3.1496 |
| Projection (mm) | 80.0 |
| Coolant-thru | Yes |
