SKU 8841.71050

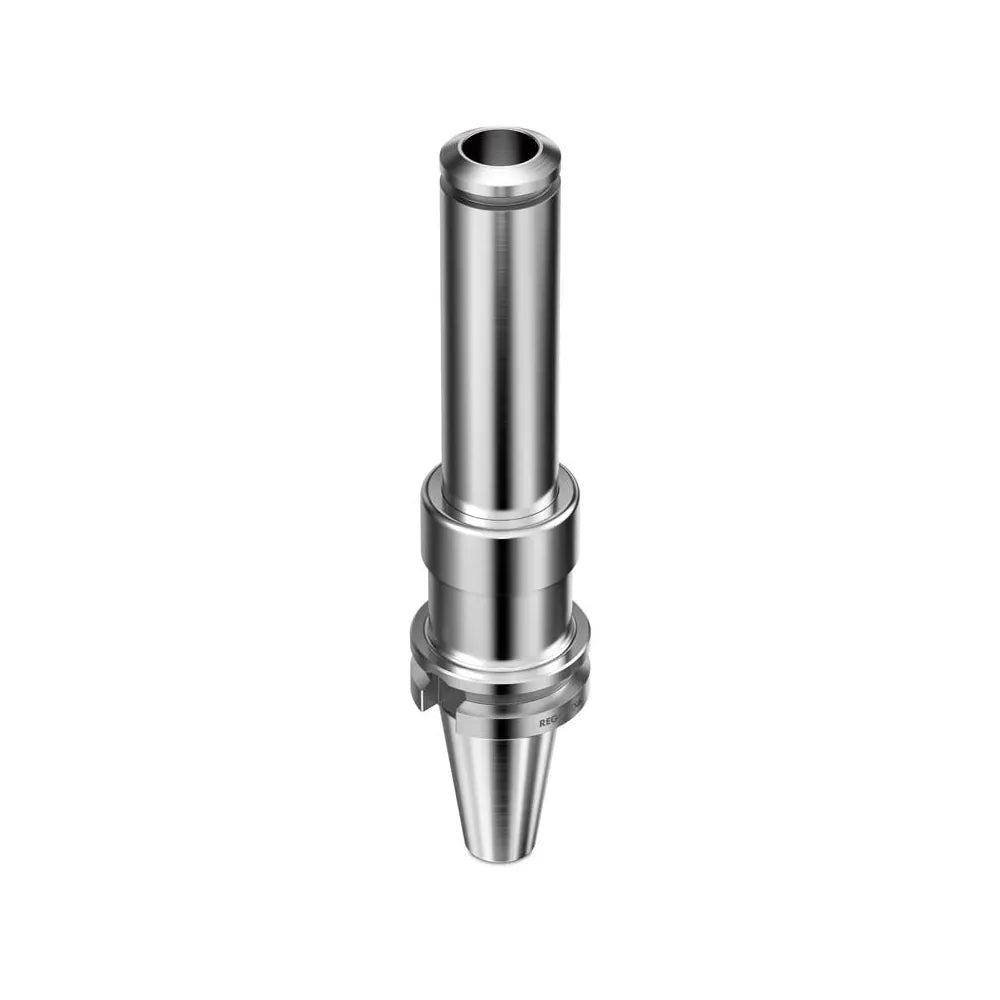

BT 40 / PG 10 x 220 XL
$1,248.00 MSRP
Available on backorder
Most items ship within 1–2 weeks; confirmed at order.
- Manufactured in Switzerland
- Balanced to 5,000 RPM
- Toolholder runout 0.0001″ TIR
- High Vibration Damping
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | BT |
| Taper class | Standard |
| Spindle size | BT 40 |
| Tool side | PG |
| Collet taken | PG10 |
| TIR (mm) | 0.003 |
| Nose diameter (in) | 0.6299 |
| Nose diameter (mm) | 16.0 |
| Projection (in) | 8.6614 |
| Projection (mm) | 220.0 |
| Coolant-thru | Yes |
