SKU 4130.70646

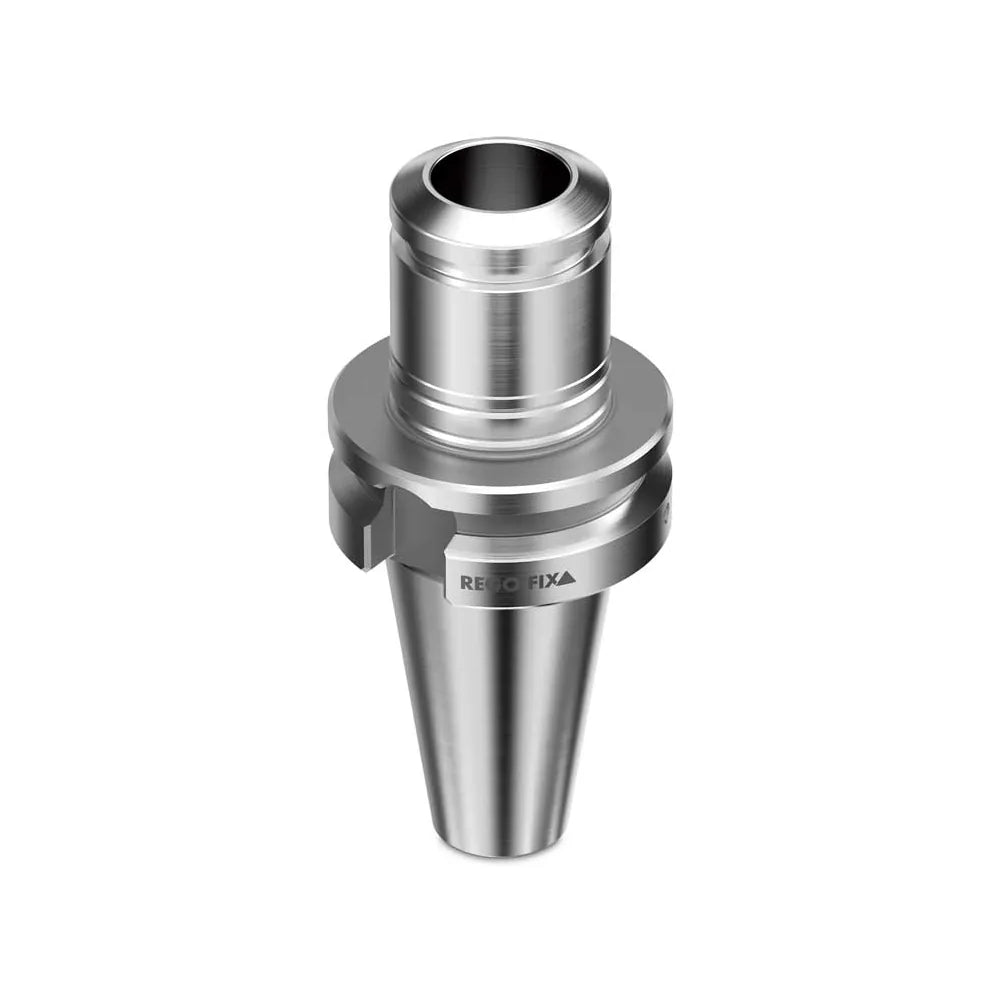

BT+ 30 / PG 6 x 080 H
$759.00 MSRP
Available on backorder
Most items ship within 1–2 weeks; confirmed at order.
- Manufactured in Switzerland
- Balanced to 30,000 RPM
- Total system runout 0.0003″ TIR
- High Vibration Damping
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | BT |
| Taper class | BIG PLUS |
| Spindle size | BT 30 |
| Tool side | PG |
| Collet taken | PG6 |
| TIR (mm) | 0.001 |
| Nose diameter (in) | 0.3937 |
| Nose diameter (mm) | 10.0 |
| Projection (in) | 3.15 |
| Projection (mm) | 80.0 |
| Max RPM | 30000 |
| Coolant-thru | Yes |
