SKU 4130.71080

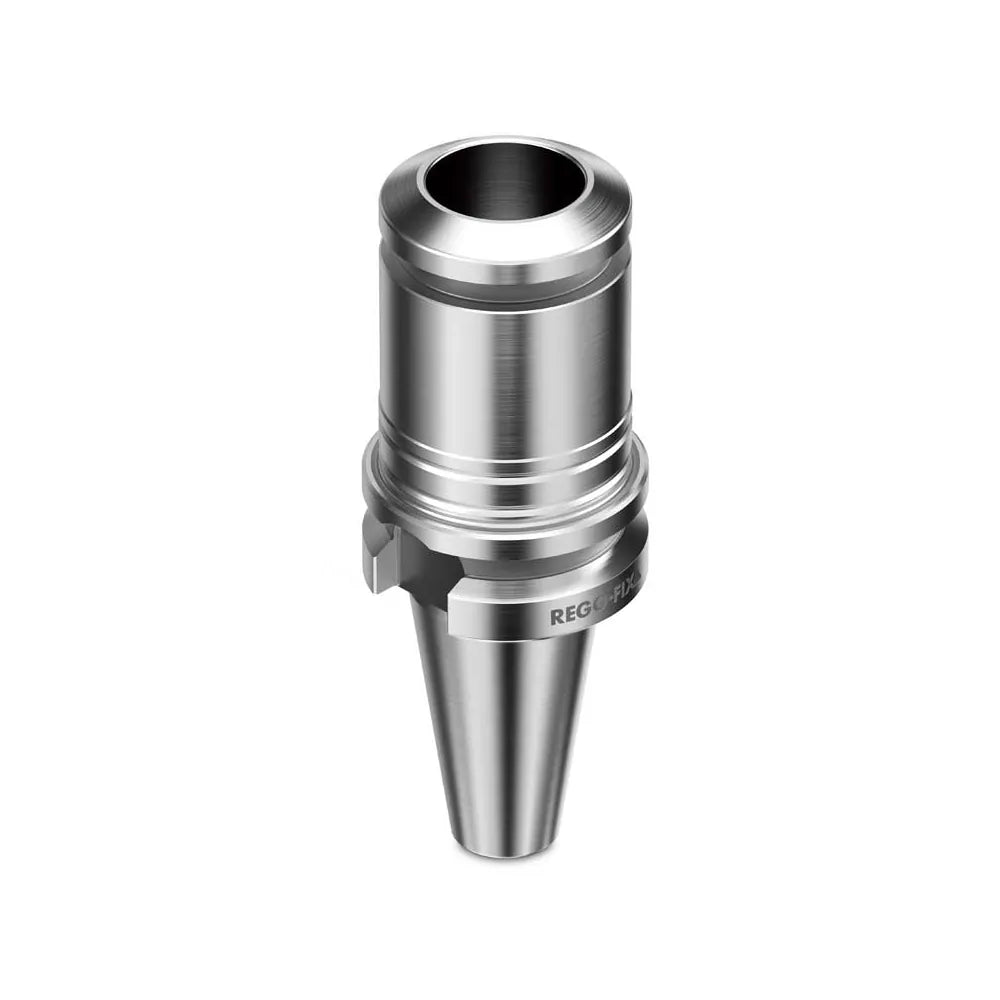

BT 30 / PG 10 x 160 H
$472.00 MSRP
In stock
Most items ship within 1–2 weeks; confirmed at order.
- Manufactured in Switzerland
- Balanced to 30,000 RPM
- Total system runout 0.0003″ TIR
- High Vibration Damping
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | BT |
| Taper class | Standard |
| Spindle size | BT 30 |
| Tool side | PG |
| Collet taken | PG10 |
| TIR (mm) | 0.001 |
| Nose diameter (in) | 0.6299 |
| Nose diameter (mm) | 16.0 |
| Projection (in) | 6.2992 |
| Projection (mm) | 160.0 |
| Coolant-thru | Yes |
