SKU 4130.12520

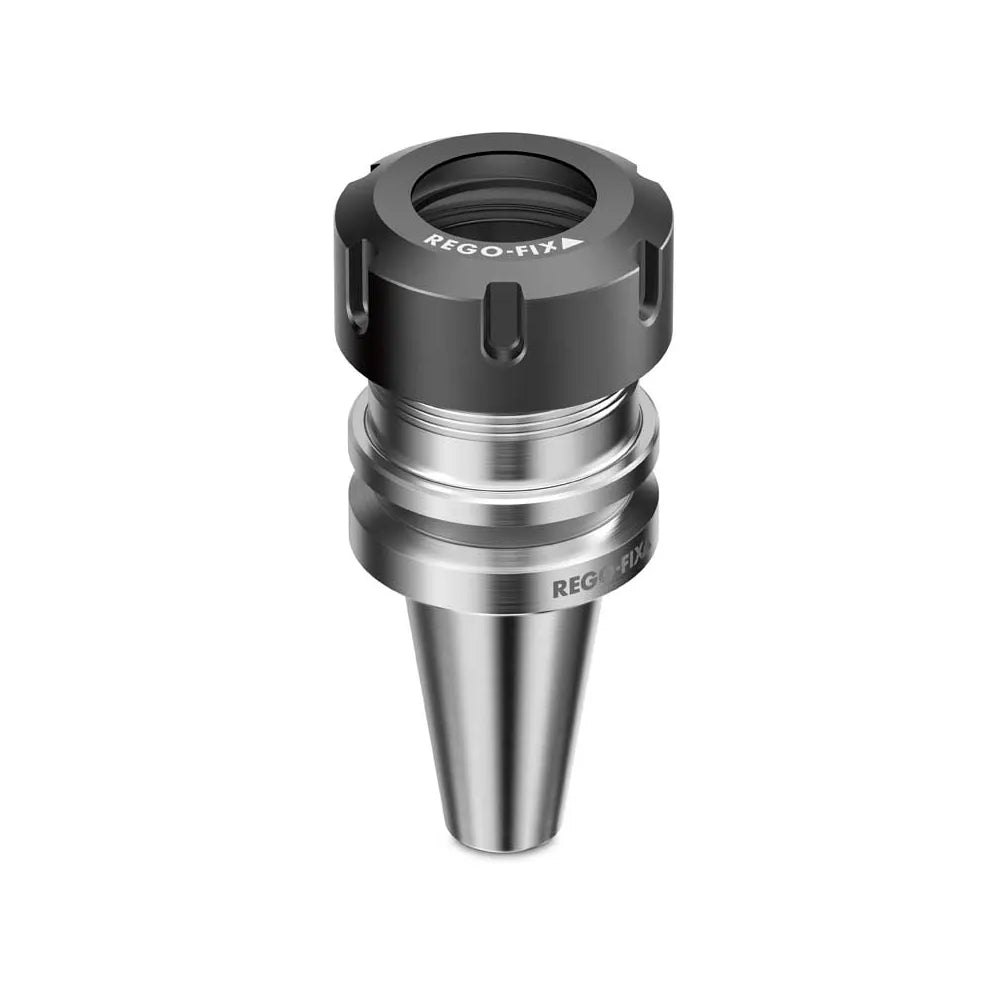

BT 30 / ER 25 x 060 H
$219.00 MSRP
In stock
Most items ship within 1–2 weeks; confirmed at order.
- Balanced to 30,000 RPM
- 0.0001″ TIR
- Includes Hi-Q Nut
- High Vibration Damping
- Manufactured in Switzerland
Specifications
| Family | Toolholders |
|---|---|
| Spindle interface | BT |
| Taper class | Standard |
| Spindle size | BT 30 |
| Tool side | ER |
| Collet taken | ER25 |
| TIR (in) | 0.0001 |
| TIR (mm) | 0.003 |
| Nose diameter (in) | 1.6548 |
| Nose diameter (mm) | 42.0 |
| Projection (in) | 2.364 |
| Projection (mm) | 60.0 |
| Max RPM | 30000 |
| Coolant-thru | Yes |
